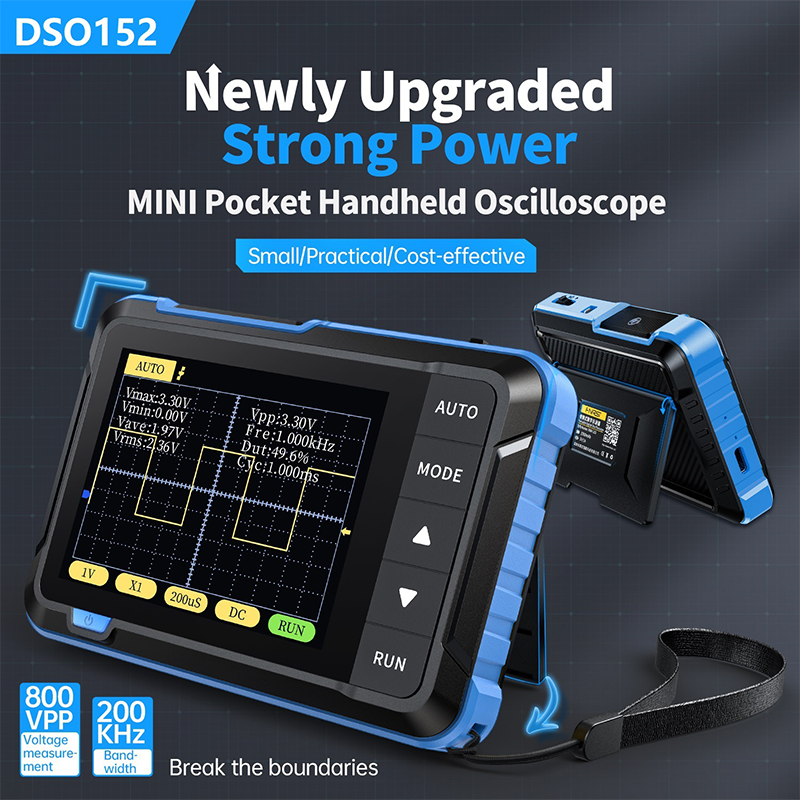

Portable Handheld Digital Oscilloscope Kit

FEATURES

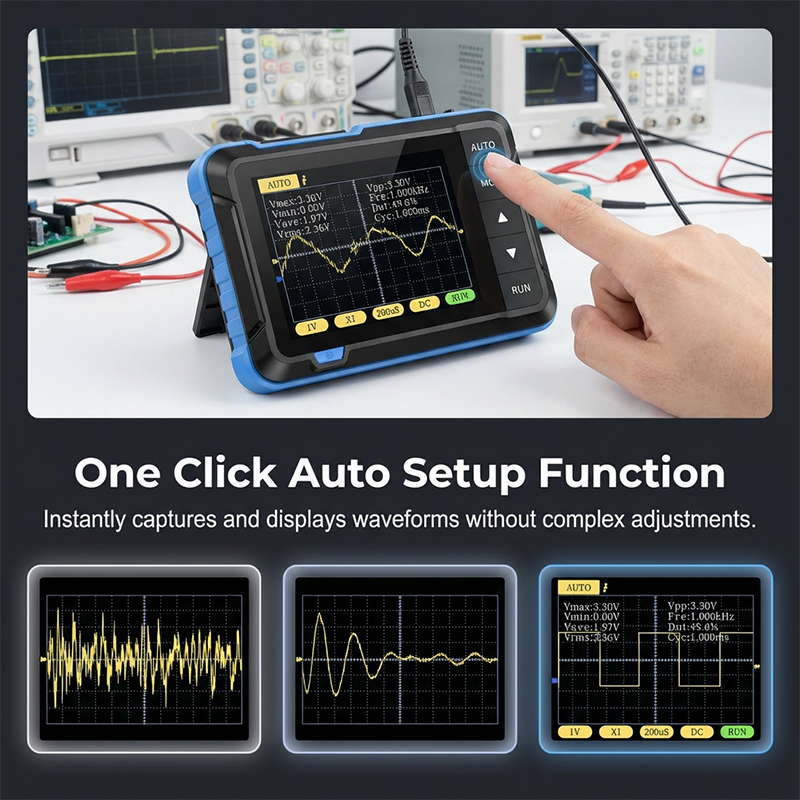

VERSATILE TRIGGERING - Equipped with Auto, Normal, and Single trigger modes, it gives you precise control to capture any type of signal, from stable, repetitive waveforms to elusive, single-shot events with exceptional ease.

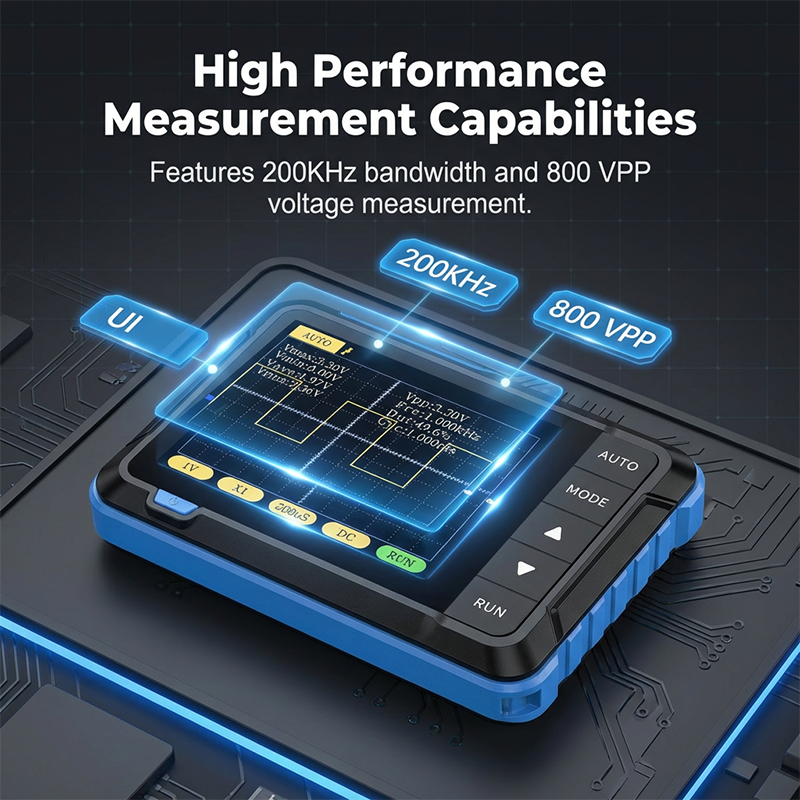

HIGH-PERFORMANCE SAMPLING - Featuring a 2.5MS/s real-time sampling rate and 200KHz analog bandwidth, this oscilloscope accurately captures and displays fast-changing signals, ensuring you see a true representation of your circuit's performance.

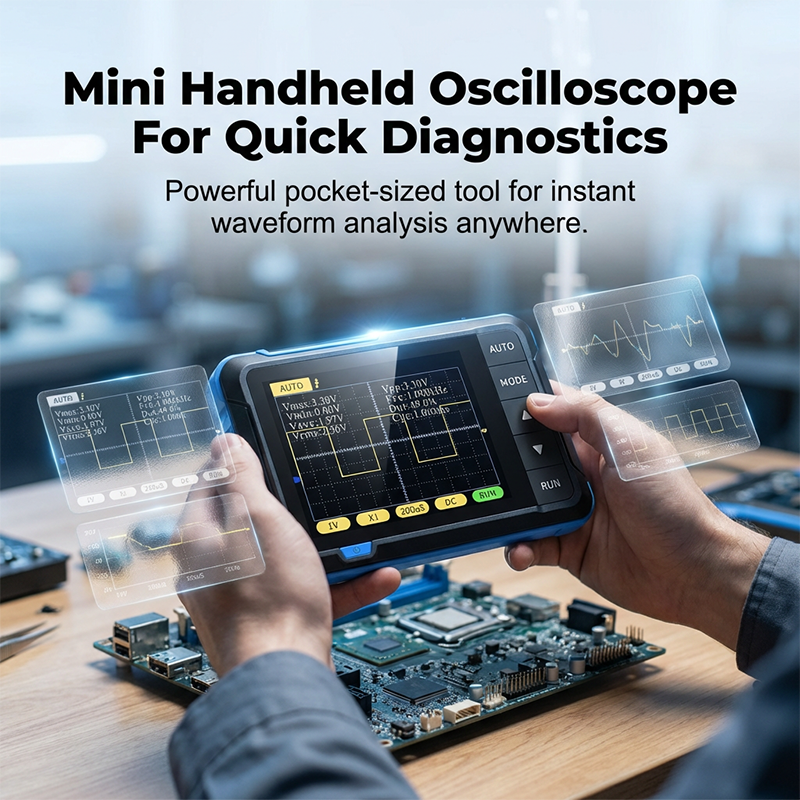

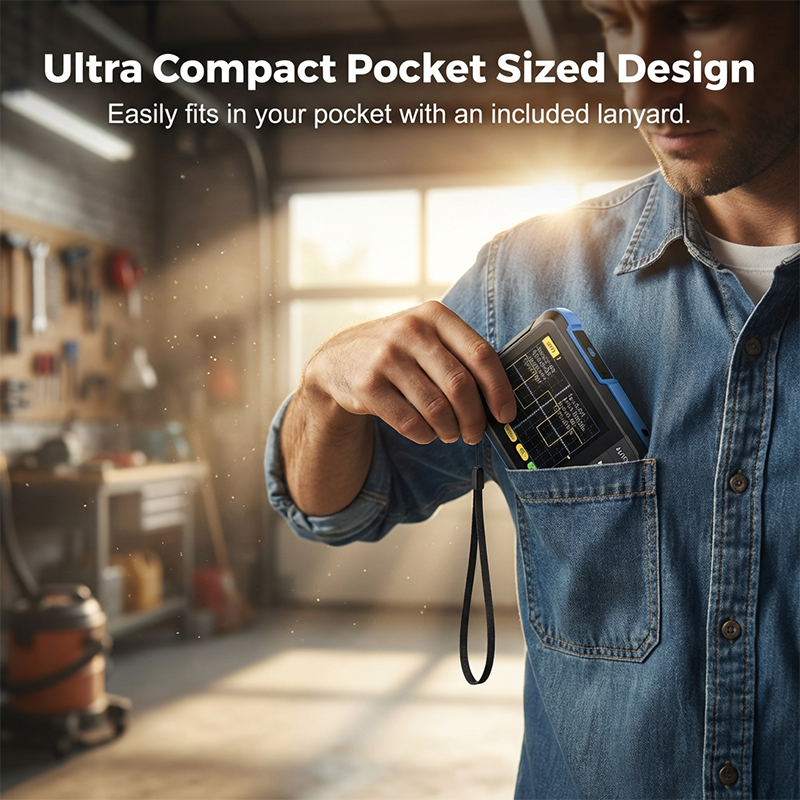

ULTRA-PORTABLE DESIGN - Its compact, lightweight body fits easily in your pocket or tool bag, providing powerful waveform analysis capabilities for field repairs, on-site diagnostics, and educational purposes without being tied to a workbench.

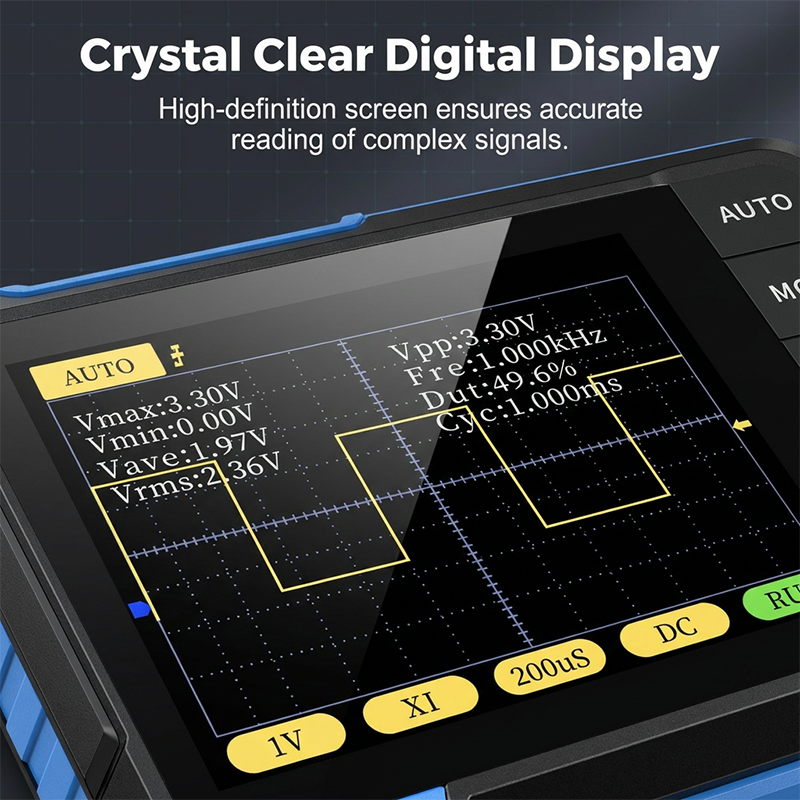

CLEAR COLOR DISPLAY - The 2.8-inch screen with 320*240 resolution presents waveforms and measurement data with outstanding clarity, allowing for quick and confident analysis of signal details at a single glance.

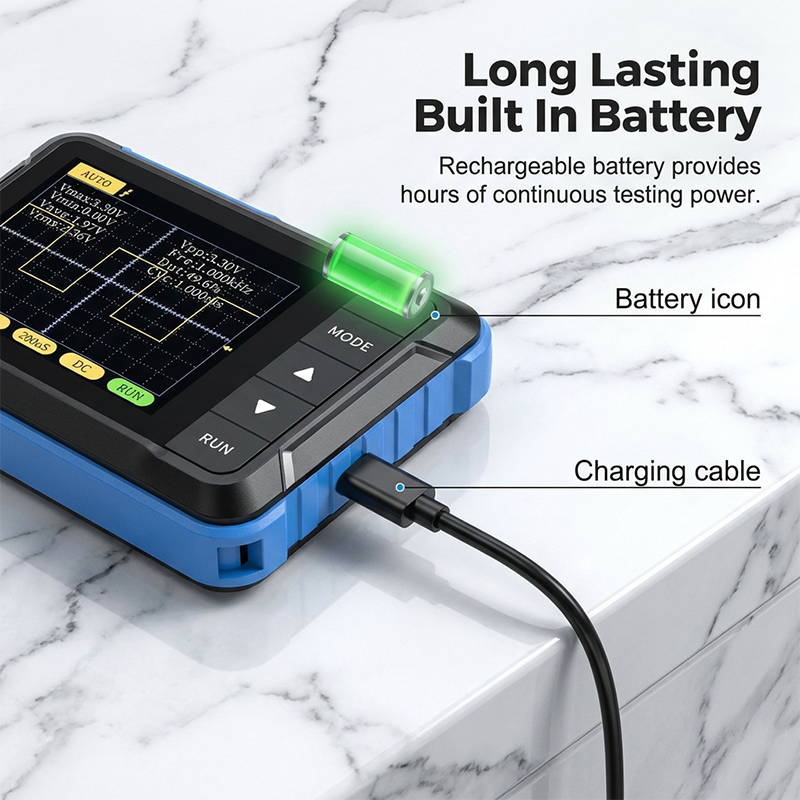

LONG-LASTING BATTERY - A built-in 1000mAh rechargeable lithium battery provides hours of continuous operation. Conveniently recharge via USB, offering true portability for projects anywhere, anytime without worrying about power outlets.

SPEC

Color: Black

Size: 99x68.3x19.5mm (3.9x2.69x0.77 inches)

Weight: 100g (3.53 oz)

Display: 2.8 inches, 320*240 resolution

Sampling Rate: 2.5MS/s

Analog Bandwidth: 200KHz

Battery Capacity: 1000mAh

Charging: 5V/1A USB

PACKAGE INCLUDES

1 * Host device

1 * Packaging color box

1 * Alligator clip probe

1 * Charging cable

1 * Lanyard

1 * Instruction manual

1 * Adapter

1 * P6100 High voltage probe

NOTES

Please note that only the upgraded versions include the adapter and probe.

Please read the instruction manual carefully before use to ensure proper operation and safety, especially when measuring high voltages.

For optimal battery life, please use a 5V/1A charger. Using chargers with different specifications may affect performance or damage the device.

It is recommended to perform the square wave calibration upon first use to ensure measurement accuracy.
